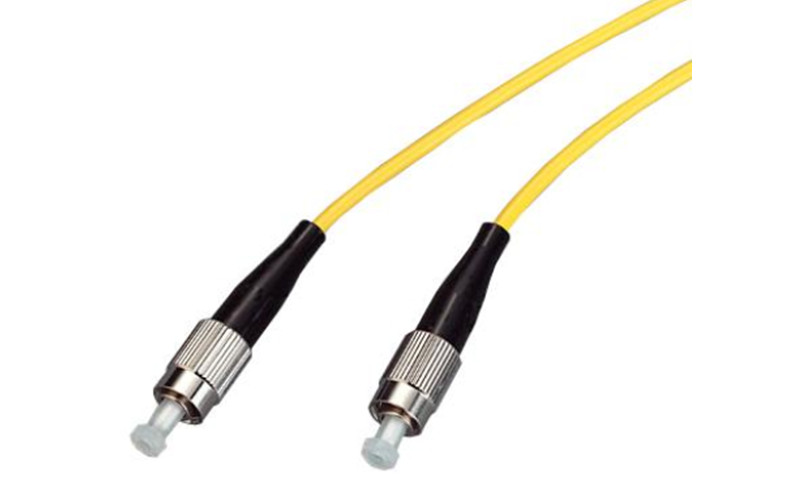

武汉FC光纤跳线

型号： FC-FC
品牌：华通鑫达
产地：武汉

在线询价

产品特点：

连接器符合IEC标准

超高回波损耗

低插入损耗

标准的散件及插芯

每条线编号或颜色区分

满足TA-NWT-001209标准要求

产品应用：

局域网、接入网

电信网络

高速率数据传输

有线电视网络

技术指标：

光纤种类	单模光纤尾缆SM			多模光纤尾缆MM
连接器种类	FC型SC型ST型LC型			FC型SC型ST型LC型
研磨方法	PC	UPC	APC	PC	UPC	APC
插入损耗dB	0.2≤	0.2≤	0.3≤	50/125μm		≤0.2
				62.5/125μm
平均插入损耗dB	0.12			≤0.1
反射损耗dB	≥45	≥50	≥60	≥35
工作温度℃	-30℃to +75℃
插拔次数	>1000次

标签: FC光纤跳线
